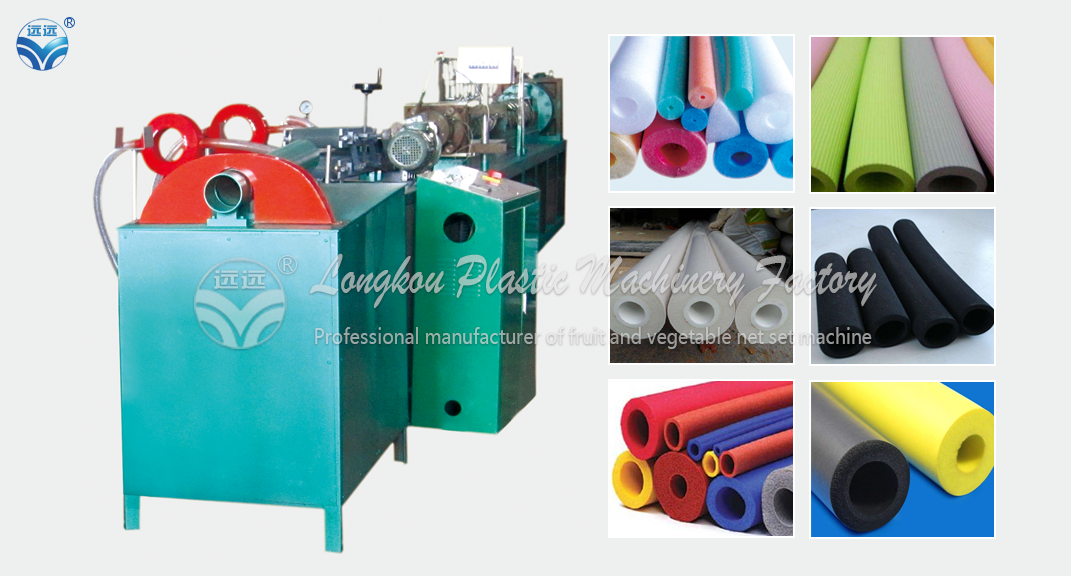

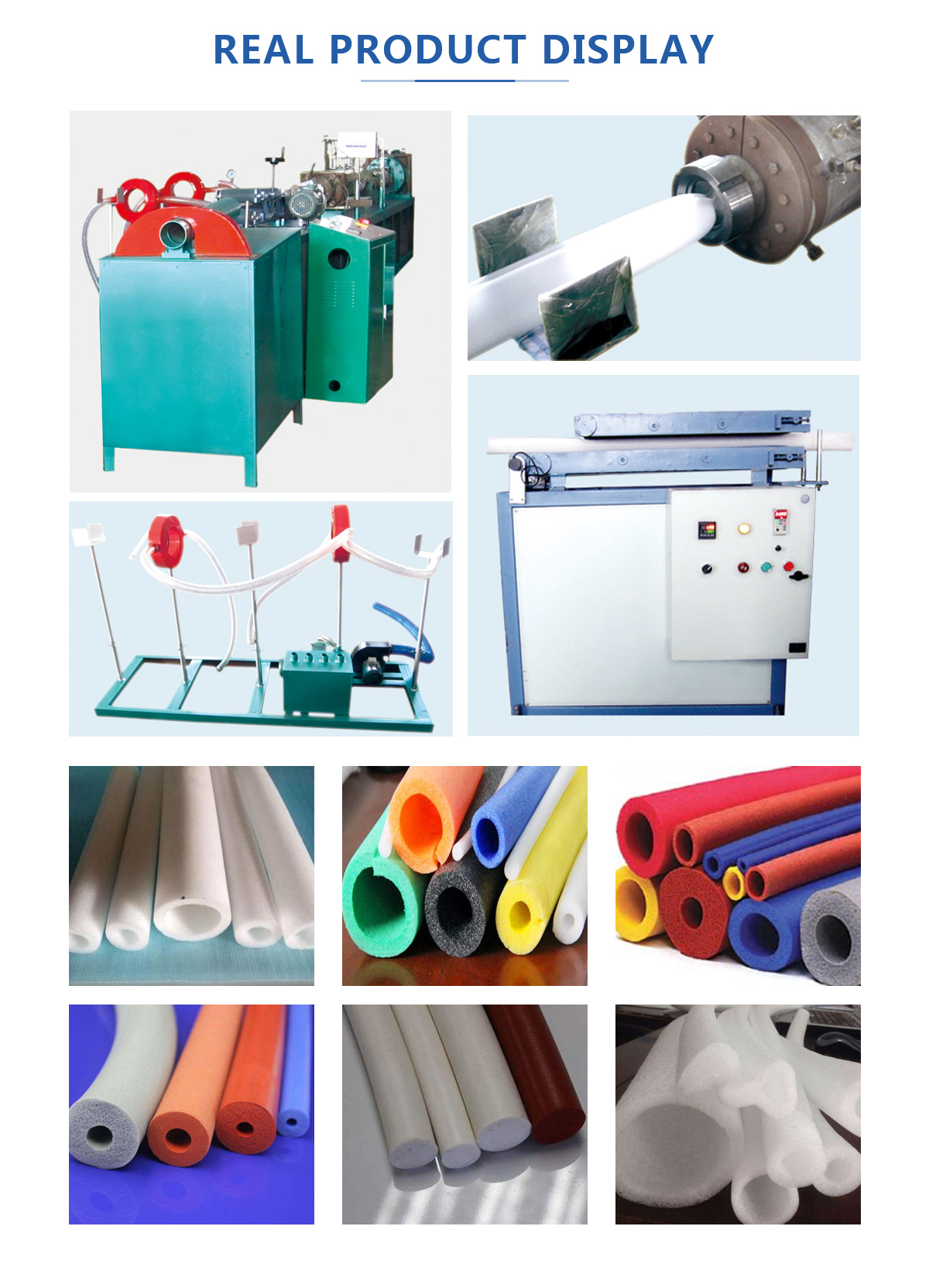

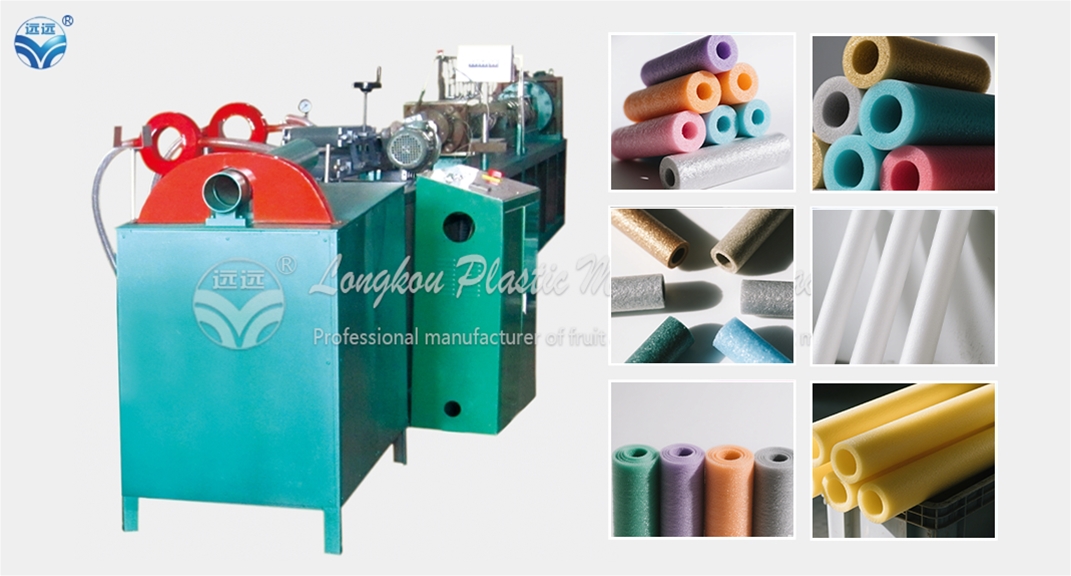

Name：EPE Foam Pipe Extrusion Line
Details
Introduction:
The production line adopts advanced single butanephysical
foaming technique with high foaming technique with high foaming
rate,energy-saving and high effciency,plastic foaming pipe and foaming
stick can be produced sequentially;foaming
sheet,net,stick,profile and fruit net can be manufactured if change various die head and assistant machine.
Main Technical Parameter:
|
Spec/item
|
SJF-75
|
SJF-90
|
SJF-105
|
|
Diameter of screw mm
|
Φ75
|
Φ90
|
Φ105
|
|
Rotate speed of screw r/min
|
10--50
|
10--50
|
10--50
|
|
Foaming Rate
|
20--40
|
20--40
|
20--40
|
|
Cooling Method
|
Wind and water
|
Wind and water
|
Wind and water
|
|
Installed capacitance kw
|
40
|
60
|
75
|
|
Output kg/hr
|
20--50
|
40--80
|
60--120
|
|
Installed Dimension
|
15×1.6×1.6
|
20×1.8×1.8
|
22×2.0×2.0
|
|
Weight T
|
3.5
|
4.6
|
5.0
|
EPE foam net extrusion line EPE foam sheet extrusion line EPE foam pipe extrusion line EPE foam sheet bonding machine EPE foam sheet laminating machine
