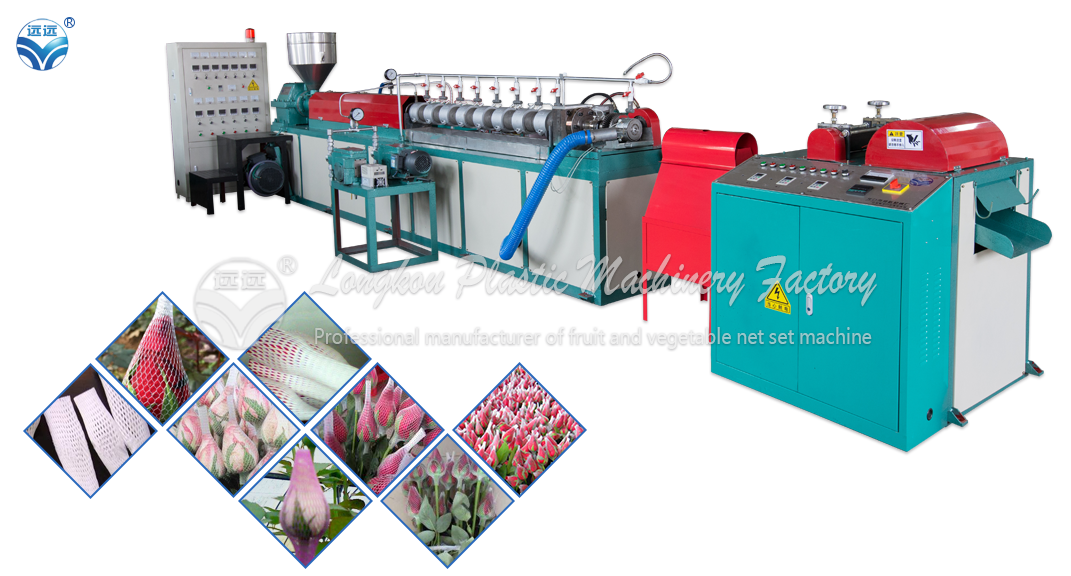

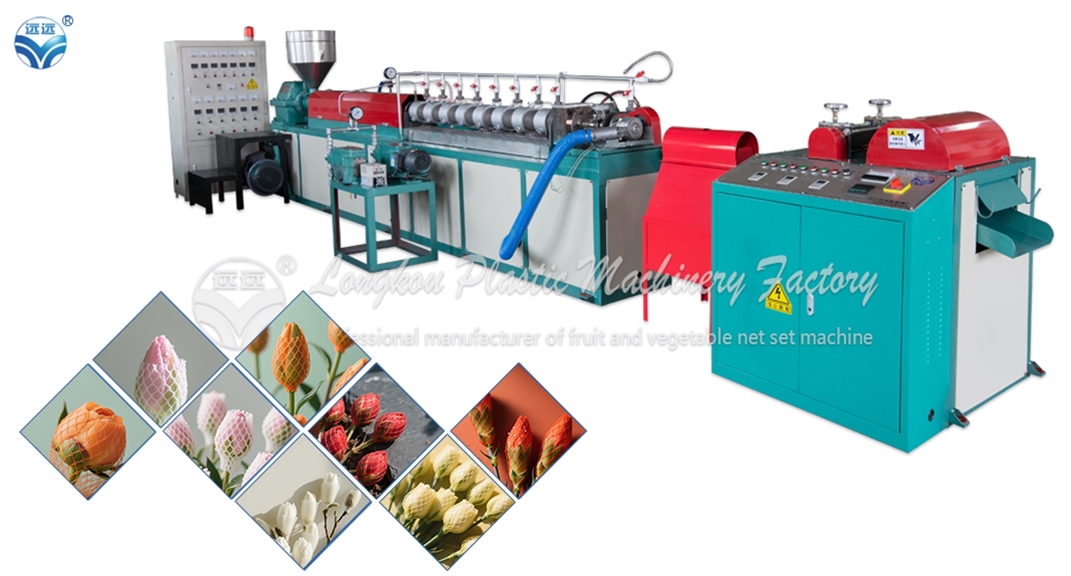

Name：Flower Net Machine
Details
The group is a new style substitute product combined advanced foreign
technique with our own several years’ practice. Current goods possesses
merits such as rational structure, convenient operation, smooth work,
safe and electricity saving, highly automatic, small volume, 18% lighter
than the former, and exquisite look. We can manufacture 0.7million to
1.2million pieces of mesh glove for fruit with 12cm length in 24hours.
The machine is equipped with different nose and auxiliary machine; is
able to produce different foaming mesh glove for fruits (pack apple,
pear, watermelon, cantaloupe, mango, etc.), rose protective mesh glove,
EPE foaming patches, EPE foaming tube, etc.
Main Technical Parameter：
Project\Type
SJF-75
SJF-75A
SJF-75B
Length-diameter Ratio of Screw
1:50
1:53.2
1:55
Motor Power of Die-head
3KW
3KW
3KW
Main Motor Power
11KW
11KW
11KW
Motor Power of Cutting-off Machine
1.5KW
1.5KW
1.5KW
Gross Power of Band Heater
18KW
20KW
20KW

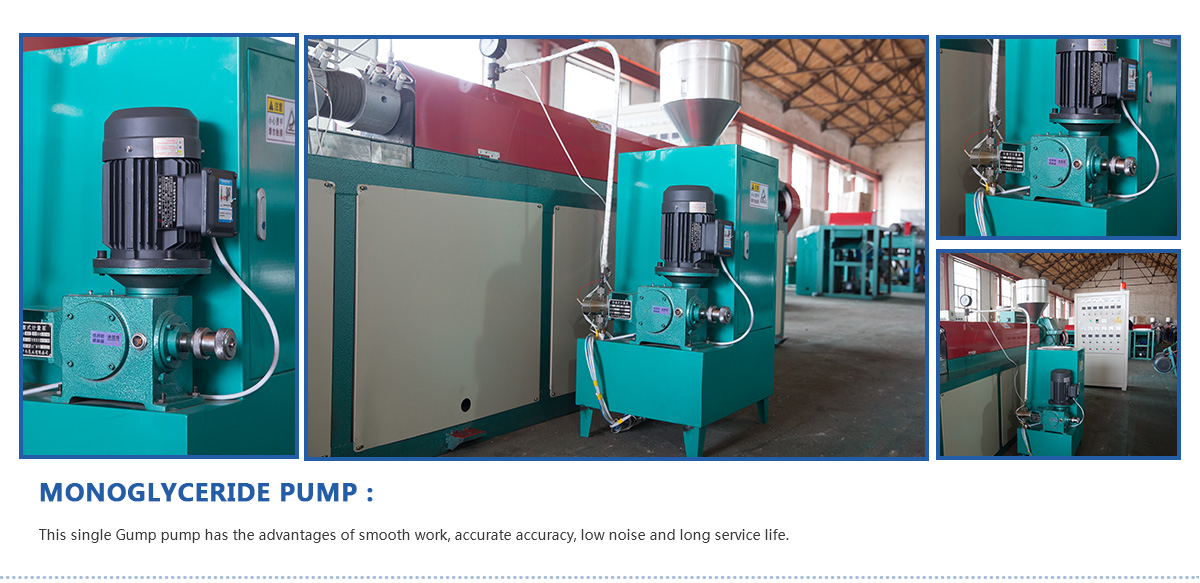

Motor Power of Heat Pump
0.55KW
0.55KW
0.55KW
Motor Power of Butane Pump
1.1KW
1.1KW
1.5KW
Power of Fan
480W
480W
480W
Total Electric Consumption
220KW/24h
200KW/24h
200KW/24h
Output
500-1200kg/24h
500-1200kg/24h
500-1200kg/24h
External Dimension of Main Frame (mm)
5000×700×1350
5250×700×1350
5370×700×1350
Weight of Aircrew
2900kg
2950kg
3000kg
Occupied Area (mm)
3000×9000
3000×9500
3000×10000
