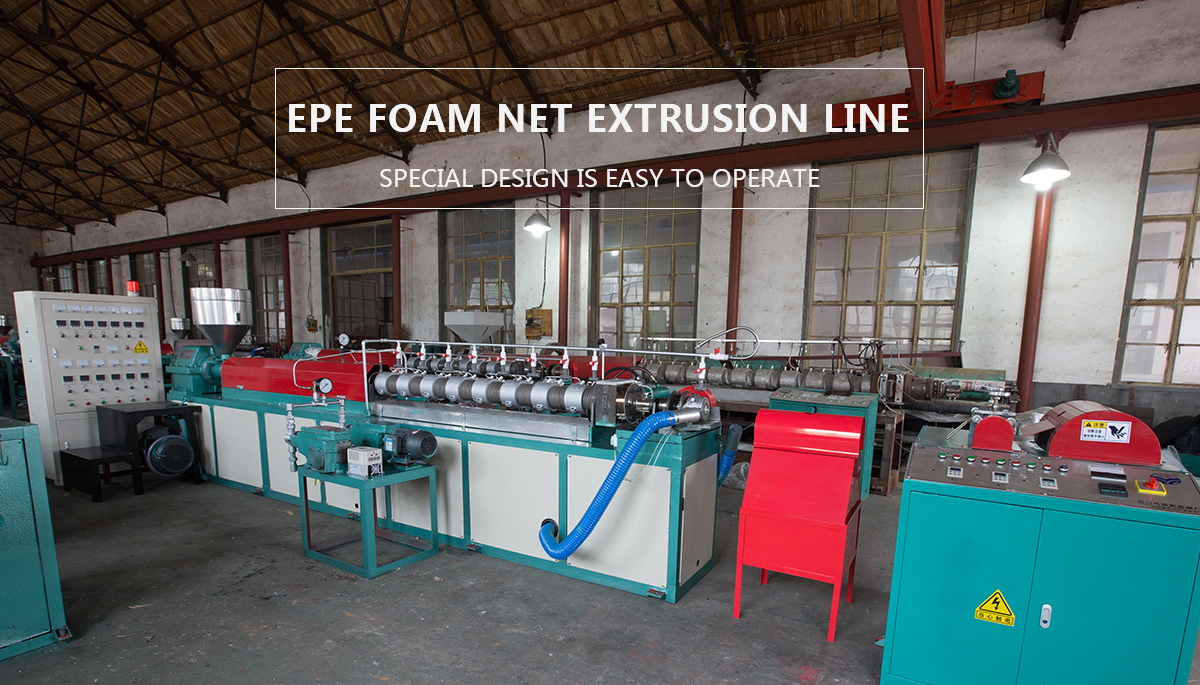

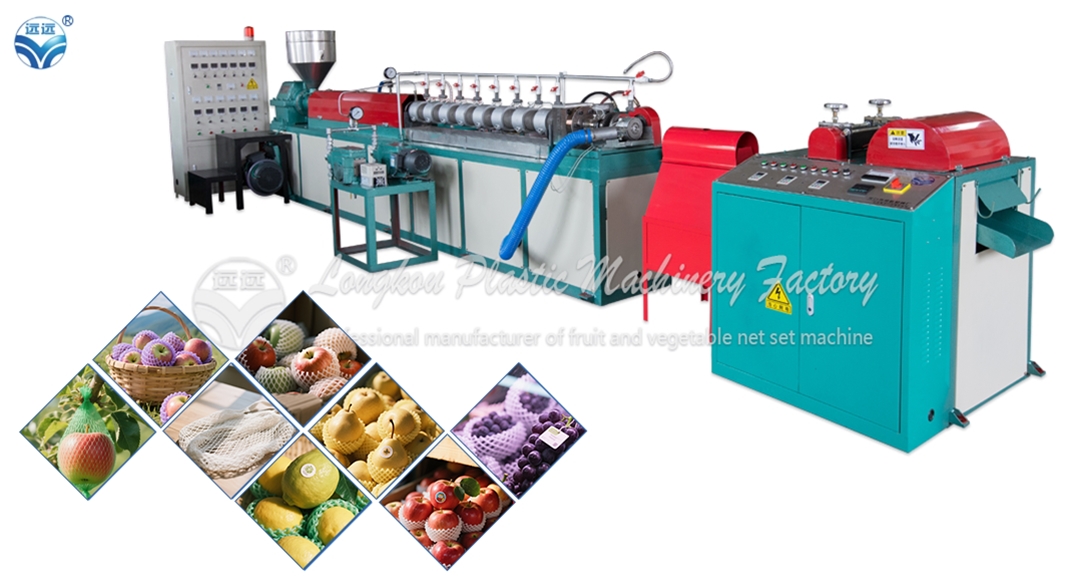

Name：EPE Foam Net Extrusion Line
Details
The group is a new style substitute product combined advanced foreign technique with our own several years’ practice. Current goods possesses merits such as rational structure, convenient operation, smooth work, safe and electricity saving, highly automatic, small volume, 18% lighter than the former, and exquisite look. We can manufacture 0.7million to 1.2million pieces of mesh glove for fruit with 12cm length in 24hours.

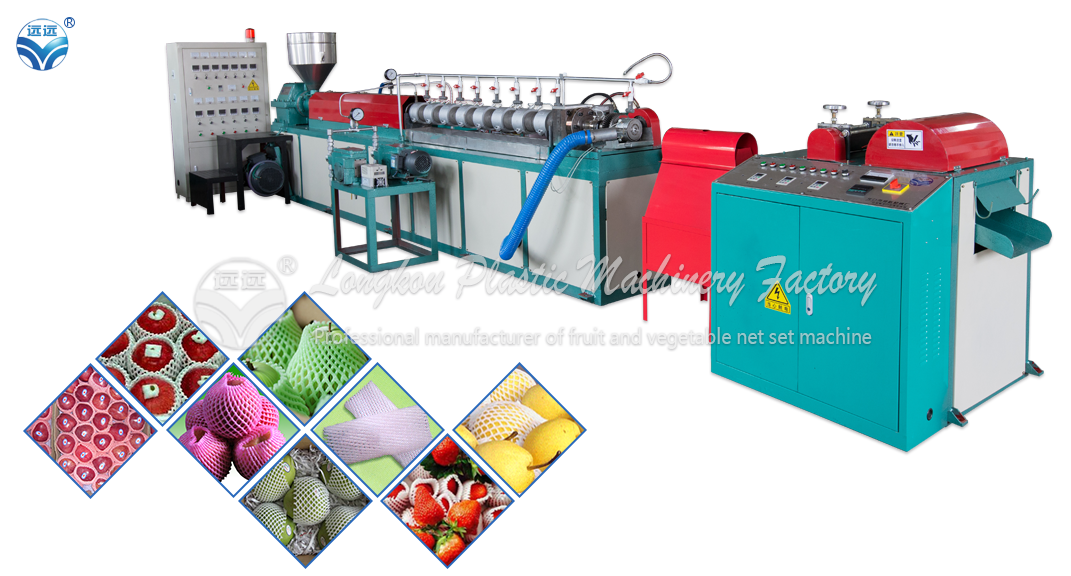

The machine is equipped with different nose and auxiliary machine; is able to produce different foaming mesh glove for fruits (pack apple, pear, watermelon, cantaloupe, mango, etc.), rose protective mesh glove, EPE foaming patches, EPE foaming tube, etc.
Main Technical Parameter：
|
Project\Type
|
SJF-75
|
SJF-75A
|
SJF-75B
|
|

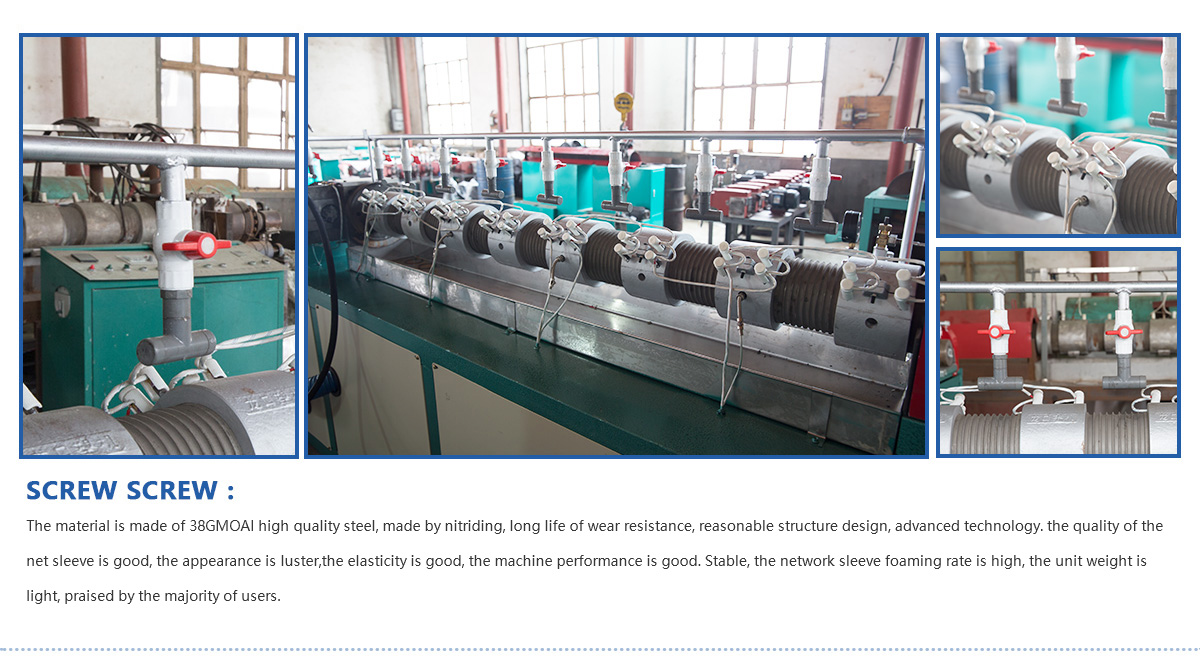

Length-diameter Ratio of Screw
|
1:50
|
1:53.2
|
1:55
|
|
Motor Power of Die-head
|
3KW
|
3KW
|
3KW
|
|

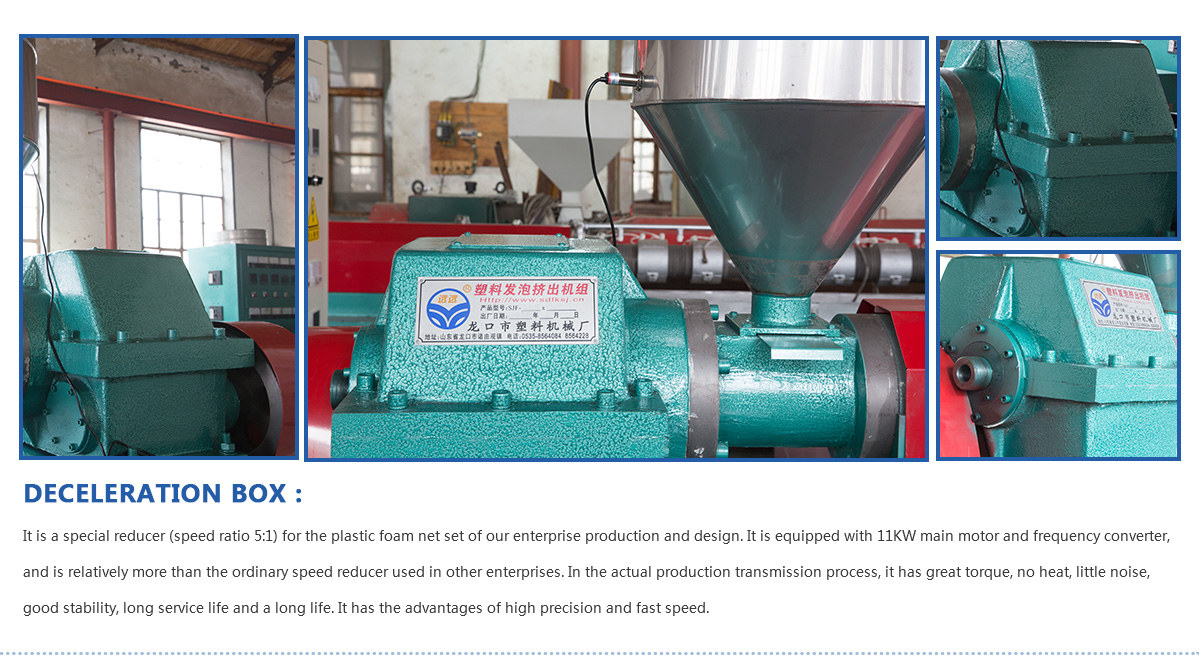

Main Motor Power
|
11KW
|
11KW
|
11KW
|
|
Motor Power of Cutting-off Machine
|
1.5KW
|
1.5KW
|
1.5KW
|
|

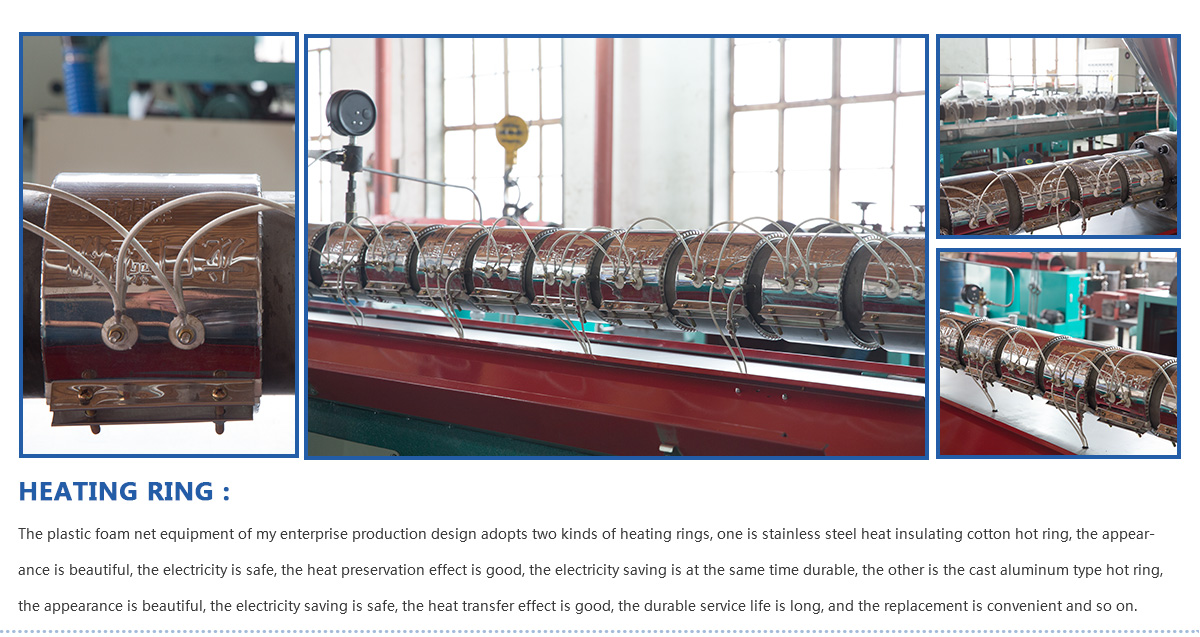

Gross Power of Band Heater
|
18KW
|
20KW
|
20KW
|
|
Motor Power of Heat Pump
|
0.55KW
|
0.55KW
|
0.55KW
|
|

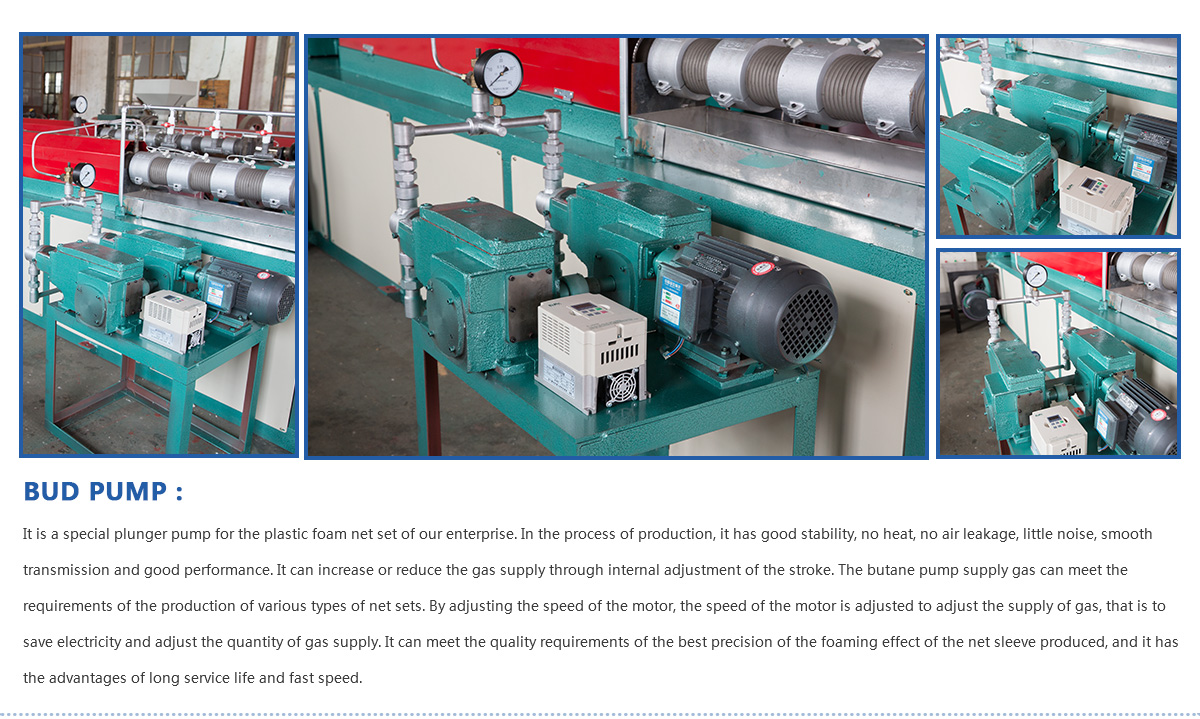

Motor Power of Butane Pump
|
1.1KW
|
1.1KW
|
1.5KW
|
|
Power of Fan
|
480W
|
480W
|
480W
|
|
Total Electric Consumption
|
220KW/24h
|
200KW/24h
|
200KW/24h
|
|
Output
|
500-1200kg/24h
|
500-1200kg/24h
|
500-1200kg/24h
|
|
External Dimension of Main Frame (mm)
|
5000×700×1350
|
5250×700×1350
|
5370×700×1350
|
|
Weight of Aircrew
|
2900kg
|
2950kg
|
3000kg
|
|
Occupied Area (mm)
|
3000×9000
|
3000×9500
|
3000×10000
|
